The Two-Slit Experiment and "One Mystery" of Quantum Mechanics
Richard Feynman said that the two-slit experiment contains the "one mystery" of quantum mechanics.
I will take just this one experiment, which has been designed to contain all of the mystery of quantum mechanics, to put you up against the paradoxes and mysteries and peculiarities of nature one hundred per cent. Any other situation in quantum mechanics, it turns out, can always be explained by saying, 'You remember the case of the experiment with the two holes? It's the same thing'.

We will show that the (one) mystery of quantum mechanics is how mere "probabilities" can causally control (statistically) the positions of material particles - how immaterial information can affect the material world. This remains a deep metaphysical mystery.

The two-slit experiment was until recent years for the most part a thought experiment, since it is difficult to build an inexpensive demonstration, but its predictions have been verified in many ways since the 1960's, primarily with electrons. Recently, extremely sensitive CCDs used in photography have been used to collect single-photon events, establishing experimentally everything that Albert Einstein imagined, merely by thinking about it, as early as 1905.

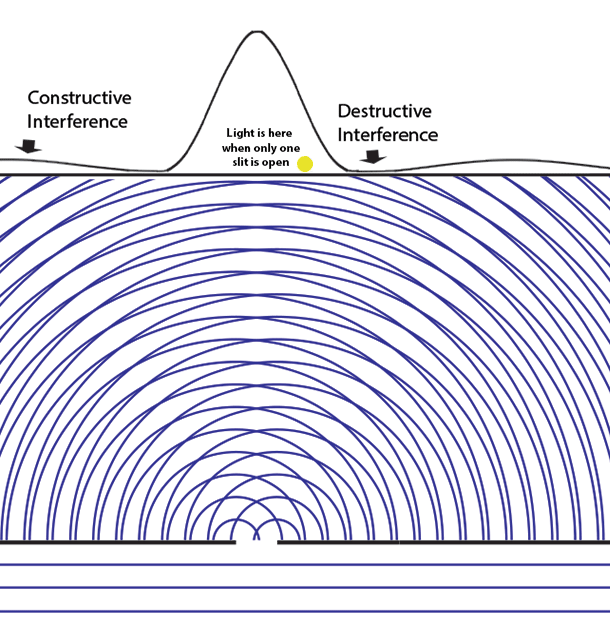

Light at the yellow dot slowly disappears as the second slit opens!
Adding light causes some light to disappear!

The two-slit experiment demonstrates better than any other experiment that a quantum wave function is a probability amplitude that can interfere with itself, producing places where the probability (the square of the absolute value of the complex probability amplitude) of finding a quantum particle is actually zero.

Perhaps the most non-intuitive aspect of the two-slit experiment is when we first note the pattern of light on the screen with just one slit open, then open the second slit - admitting more light into the experiment, but observe that some places on the screen where there was visible light, have now gone dark! And this happens even when we are admitting only one particle of light at a time.

Light waves are often compared to water waves, as are quantum probability waves, but this latter is a serious error. Water waves and light waves (as well as sound waves) contain something substantial like matter or energy. But quantum waves are just abstract information - mathematical possibilities.

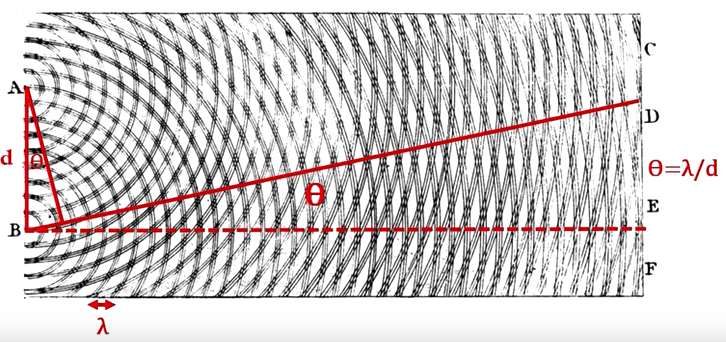

Young's 1802 drawing of wave interference
Water waves in a pond
Dr. Quantum and the two-slit experiment
The cancellation of crests and troughs in the motion of water and other waves creates high and low points in water waves that have the same shape as bright and dark areas found in the "fringes" of light at the sharp edges of an object. These interference pattern were predicted to occur in double-slit experiments by Thomas Young in the early nineteenth century.

The two-slit experiment also demonstrates the famous "collapse" of the wave function or "reduction" of the wave packet, which show an inherent probabilistic element in quantum mechanics that is irreducibly ontological and nothing like the epistemological indeterminacy (human ignorance) in classical statistical physics.

Note that the probability amplitude is pure information. It is neither matter nor energy. When a wave function "collapses" or "goes through both slits" in this dazzling experiment, nothing material is traveling faster than the speed of light or going through both slits.

We argue that the particle of matter or energy always goes through just one slit, although the popular Copenhagen interpretation of physics claims we cannot know the particle path, that a path does not even exist until we make a measurement, that the particle may be in more than one place at the same time, and other similar nonsense that deeply bothered Einstein as he hoped for an "objective reality" independent of human observers.

For example, a large number of panpsychists, some philosophers, some scientists, believe that the mind of a conscious observer is needed to cause the collapse of the wave function.

There is something similar in the Einstein-Podolsky-Rosen thought experiments, where measurement of one particle transmits nothing physical (matter or energy) to the other "entangled" particle. We shall show that it is conservation of angular momentum or of spin that makes the state of the coherently entangled second particle determinate, however far away it might be.

In the two-slit experiment, just as in the Dirac Three Polarizers experiment, the critical case to consider is just one photon or electron at a time in the experiment.

With one particle at a time (whether photon or electron), the quantum object is mistakenly described as interfering with itself, when interference is never seen in a single event. It only shows up in the statistics of large numbers of experiments. Indeed, even in the one-slit case, interference fringes are visible when large numbers of particles are present, although this is rarely described in the context of quantum mysteries.

It is the fundamental relation between a particle and the associated wave that controls its probable locations that raises the "local reality" question first seen in 1905 and described in 1909 by Albert Einstein. Thirty years later, the EPR paper and Erwin Schrödinger's insights into the wave function of two entangled particles, first convinced physicists that there was a deep problem .

It was not for another thirty years that John Stewart Bell in 1964 imagined an experimental test that could confirm or deny quantum mechanics. Ironically, the goal of Bell's "theorem" was to invalidate the non-intuitive aspects of quantum mechanics and restore Einstein's hope for a more deterministic picture of an "objective reality" at, or perhaps even underlying below, the microscopic level of quantum physics.

At about the same time, in his famous Lectures on Physics at Cal Tech and the Messenger Lectures at Cornell, Richard Feynman described the two-slit experiment as demonstrating what he claimed is the "only mystery" of quantum mechanics.

We can thus begin the discussion of the two-slit experiment with a section from Feynman's sixth Messenger lecture entitled "Probability and Uncertainty." We provide the complete video and text of the lecture on this page, and a version starting with Feynman's provocative statement that "no one understands quantum mechanics" below.

How, Feynman asks, can the particle go through both slits? We will see that the thing that goes through both slits is only immaterial information - the probability amplitude wave function. The particle always goes through a single slit. A particle cannot be divided and in two places at the same time. It is the wave function that interferes with itself. And the highly localized particle can not be identified with the wave widely distributed in space and determined by the boundary conditions of the measuring apparatus.

The immaterial wave function exerts an causal influence over the particles, one that we can jusitifiably call "mysterious." It results in the statistics of many experiments agreeing with the quantum mechanical predictions with increasing accuracy as we increase the number of identical experiments.

It is this "influence," no ordinary "force," that is Feynman's "only mystery" in quantum mechanics.

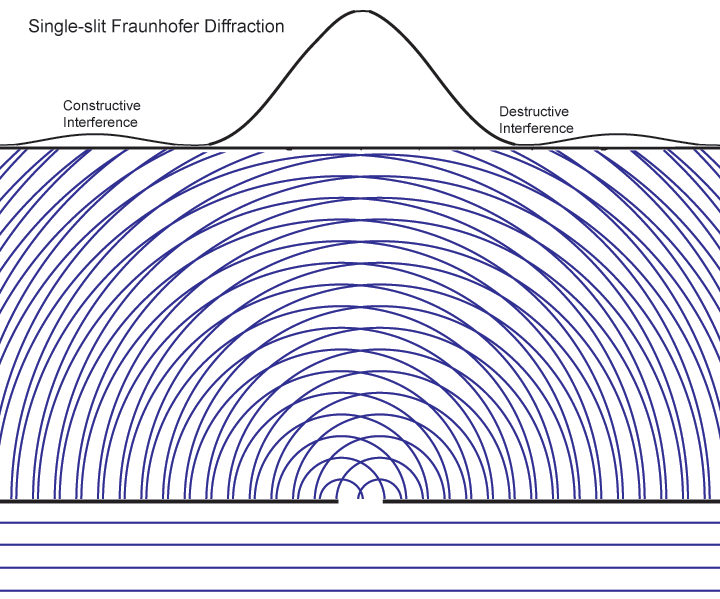

Let's look first at the one-slit case. We prepare a slit that is about the same size as the wavelength of the light in order to see the Fraunhofer diffraction effect most clearly. Parallel waves from a distant source fall on the slit from below. The diagram shows that the wave from the left edge of the slit interferes with the one from the right edge. If the slit width is d and the photon wavelength is λ, at an angle α ≈ λ/2d there will be destructive interference. At an angle α ≈ λ/d, there is constructive interference (which shows up as the fan out of lightening patterns in the interfering waves in the illustration).

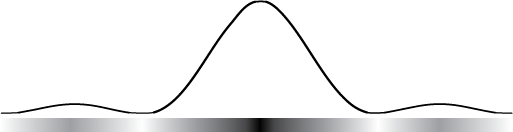

The height of the function or curve on the top of the diagram is proportional to the number of photons falling along the screen. At first they are individual pixels in a CCD or grains in a photographic plate, but over time and very large numbers of photons they appear as the continuous gradients of light in the band below (we represent this intensity as the height of the function).

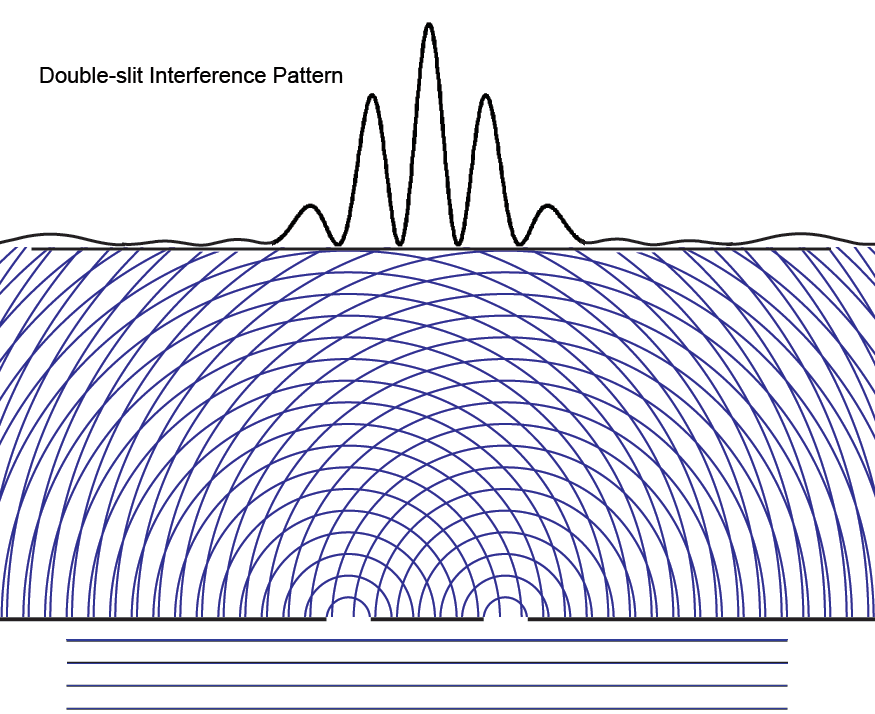

Now what happens if we add a second slit? Perhaps we should start by showing what happens if we run the experiment with the first slit open for a time, and then with the second slit open for an equal time. In this case, the height of the intensity curve is the sum of the curves for the individual slits.

But that is not the intensity curve we get when the two slits are open at the same time! Instead, we see many new interference fringes with much narrower width angles α ≈ λ/D, where D is the distance between the two slits. Note that the overall envelope of the curve is similar to that of one big slit of width D. And also note many more lightening fan-outs in the overlapping waves.

Remembering that the double-slit interference appears even if only one particle at a time is incident on the two slits, we see why many say that the particle interferes with itself. But it is the wave function alone that is interfering with itself. Whichever slit the particle goes through, the interference pattern is what it is because the two slits are open.

This is the deepest metaphysical mystery in quantum mechanics. How can an abstract probability wave influence the particle paths to show interference when large numbers of particles are collected?

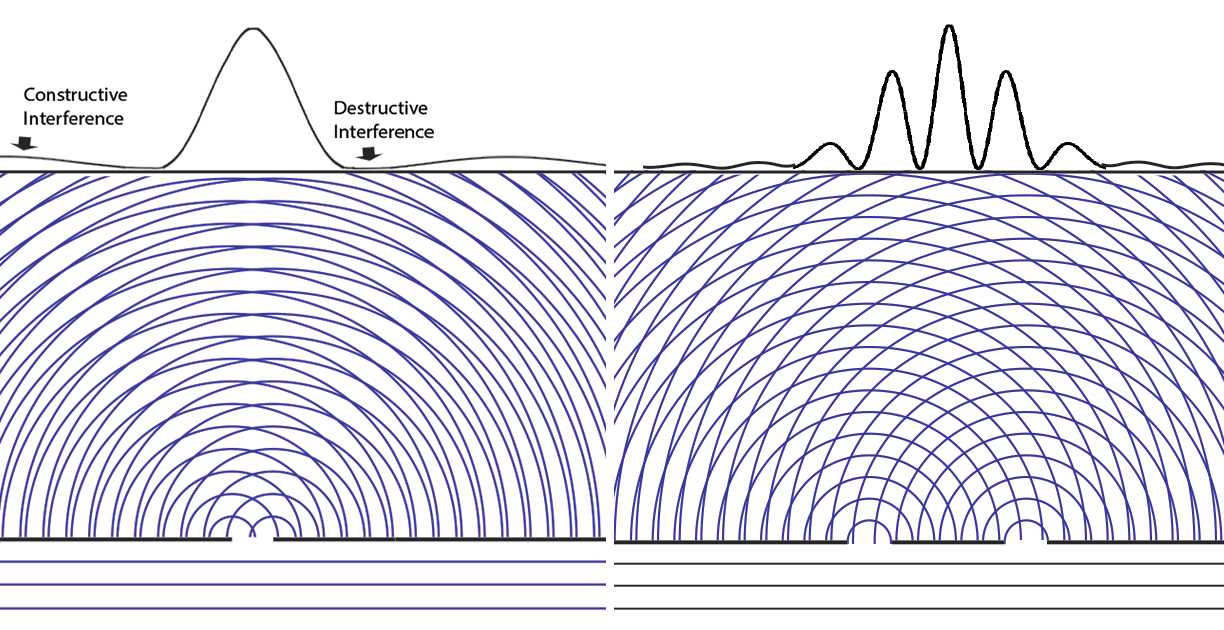

Why interference patterns show up when both slits are open, even when particles go through just one slit, though we cannot know which slit or we lose the interference
When there is only one slit open (here the left slit), the probabilities pattern has one large maximum (directly behind the slit) and small side fringes. If only the right slit were open, this pattern would move behind the right slit.

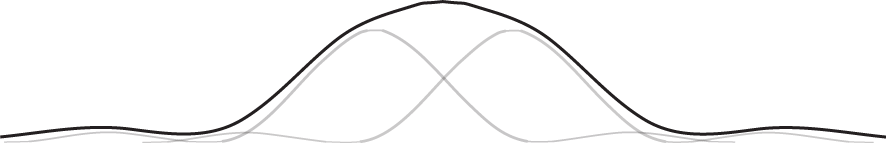

If we add up the results of some experiments with the left slit open and others with the right open we don't see the multiple fringes that appear with two slits open.

When both slits are open, the maximum is now at the center between the two slits, there are more interference fringes, and these probabilities apply whichever slit the particle enters. The solution of the Schrödinger equation depends on the boundary conditions - different when two holes are open. The "one mystery" remains - how these "probabilities" can exercise causal control (statistically) over matter or energy particles.

Feynman's path integral formulation of quantum mechanics suggests the answer. His "virtual particles" explore all space (the "sum over paths") as they determine the variational minimum for least action, thus the resulting probability amplitude wave function can be said to "know" which holes are open.

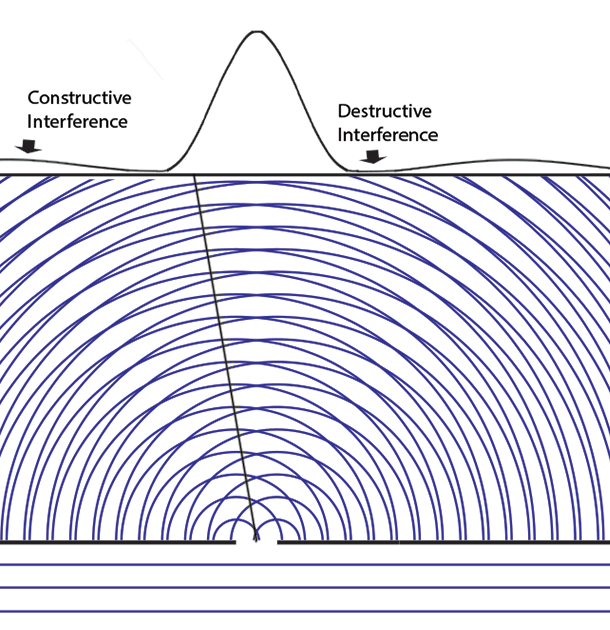

Now let's see what happens if we animate the opening and closing of the right-hand slit.

The wave function depends on which slits are open, not on whether there is a particle in the experiment.

Collapse of the Wave Function

But how do we interpret the notion of the "collapse" of the wave function? At the moments just before a particle is detected at the CCD or photographic plate, there is a finite non-zero probability that the photon could be detected anywhere that the modulus (complex conjugate squared) of the probability amplitude wave function has a non-zero value.

If our experiment were physically very large (and it is indeed large compared to the atomic scale), we can say that the finite probability of detecting (potentially measuring) the particle at position x1 on the screen "collapses" (goes to zero) and reappears as part of the unit probability (certainty) that the particle is at x2, where it is actually measured.

Since the collapse to zero of the probability at x1 is instantaneous with the measurement at x2, critics of quantum theory like to say that something traveled faster than the speed of light. This is most clear in the nonlocality and entanglement aspects of the Einstein-Podolsky-Rosen experiment. But the sum of all the probabilities of measuring anywhere on the screen is not a physical quantity, it is only immaterial information that "collapses" to a point.

Here is what happens to the probability amplitude wave function (the blue waves) when the particle is detected at the screen (either a photographic plate or CCD) in the second interference fringe to the right (red spot). The probability simply disappears instantly.

Animation of a wave function collapsing - click to restart

History
The first suggestion of two possible directions through a slit, one of which disappears ("collapses?") when the other is realized (implying a mysterious "nonlocal" correlation between the directions), was made by Albert Einstein at the 1927 Solvay conference on "Electrons and Photons." Niels Bohr remembered the occasion with a somewhat confusing description. Here is his 1949 recollection:

At the general discussion in Como, we all missed the presence of Einstein, but soon after, in October 1927, I had the opportunity to meet him in Brussels at the Fifth Physical Conference of the Solvay Institute, which was devoted to the theme "Electrons and Photons."
Note that they wanted Einstein's reaction to their work, but actually took little interest in Einstein's concern about the nonlocal implications of quantum mechanics, nor did they look at his work on electrons and photons, the theme of the conference!.
At the Solvay meetings, Einstein had from their beginning been a most prominent figure, and several of us came to the conference with great anticipations to learn his reaction to the latest stage of the development which, to our view, went far in clarifying the problems which he had himself from the outset elicited so ingeniously. During the discussions, where the whole subject was reviewed by contributions from many sides and where also the arguments mentioned in the preceding pages were again presented, Einstein expressed, however, a deep concern over the extent to which a causal account in space and time was abandoned in quantum mechanics.

To illustrate his attitude, Einstein referred at one of the sessions to the simple example, illustrated by Fig. 1, of a particle (electron or photon) penetrating through a hole or a narrow slit in a diaphragm placed at some distance before a photographic plate.

photon passes through a slit

On account of the diffraction of the wave connected with the motion of the particle and indicated in the figure by the thin lines, it is under such conditions not possible to predict with certainty at what point the electron will arrive at the photographic plate, but only to calculate the probability that, in an experiment, the electron will be found within any given region of the plate.

The "nonlocal" effects at point B are just that the probability of an electron being found at point B goes to zero instantly (not an "action at a distance") when an electron is localized at point A
The apparent difficulty, in this description, which Einstein felt so acutely, is the fact that, if in the experiment the electron is recorded at one point A of the plate, then it is out of the question of ever observing an effect of this electron at another point (B), although the laws of ordinary wave propagation offer no room for a correlation between two such events.

Although Bohr seems to have missed Einstein's point completely, Werner Heisenberg at least came to explain it well. In his 1930 lectures at the University of Chicago, Heisenberg presented a critique of both particle and wave pictures, including a new example of nonlocality that Einstein had apparently developed since 1927. It includes Einstein's concern about "action-at-a-distance" that might violate his principle of relativity, and anticipates the Einstein-Podolsky-Rosen paradox. Heisenberg wrote:

In relation to these considerations, one other idealized experiment (due to Einstein) may be considered. We imagine a photon which is represented by a wave packet built up out of Maxwell waves. It will thus have a certain spatial extension and also a certain range of frequency. By reflection at a semi-transparent mirror, it is possible to decompose it into two parts, a reflected and a transmitted packet. There is then a definite probability for finding the photon either in one part or in the other part of the divided wave packet. After a sufficient time the two parts will be separated by any distance desired; now if an experiment yields the result that the photon is, say, in the reflected part of the packet, then the probability of finding the photon in the other part of the packet immediately becomes zero. The experiment at the position of the reflected packet thus exerts a kind of action (reduction of the wave packet) at the distant point occupied by the transmitted packet, and one sees that this action is propagated with a velocity greater than that of light. However, it is also obvious that this kind of action can never be utilized for the transmission of signals so that it is not in conflict with the postulates of the theory of relativity.

Clearly the "kind of action (reduction of the wave packet)" described by Heisenberg is the same "mysterious" influence that the wave function has over the places that the particle will be found statistically in a large number of experiments, including our canonical "mystery," the two-slit experiment.

Apart from the statistical information in the wave function, quantum mechanics gives us only vague and uncertain information about any individual particle. This is the true source of Heisenberg's uncertainty principle. It is the reason that Einstein correctly describes quantum mechanics as "incomplete."

Quantum mechanics does not prove that the particle actually has no position at each instant and a path that conserves its momentum, spin, and other conserved properties.

In Einstein's view of "objective reality," the particle has those properties, even if quantum mechanics prevents us from knowing them - without a measurement that destroys their interference capabilities or "decoheres" them.

Some Other Animations of the Two-Slit Experiment
None of these animations, viewed many millions of times, can explain why a particle entering one slit when both are open exhibits the properties of waves characteristic of two open slits. It remains Feynman's "one mystery" of quantum mechanics.

PBS Digital Studios

Veritasium

Veritasium

Dr Quantum

Wave-Particle Duality Animation

One good thing in this animation is that it initially shows only particles firing at the slits. This is important historically because Isaac Newton thought that light was a stream of particles traveling along a light ray. He solved many problems in optics by tracing light rays through lenses. But without a clear verbal explanation it is hard to follow.

The Fresnel-Arago Version of the Two-slit Experiment

We look at the Hamamatsu Photonics version of the Fresnel-Arago two-slit experiment.

This experiment puts polarizers at +45 and -45 degrees over the left and right slits.

Let's see how the wave function explains the different results with a third polarizer (analyzer) intermediate between the slits and the screen in vertical or horizontal orientation.

As Paul Dirac explains, a 45 degree polarizer produces photons in a linear combination (or superposition) of vertical |v> and horizontal [h> states.

So the photons passing through either slit are 50% vertical and 50% horizontal.

But note that the vertical photons going through both slits are in phase (pointing up), while the horizontal photons going through the right slit (+45 pointing right |→>) are out of phase with those going through the left slit (-45 pointing left |←>).

So when the intermediate polarizer (analyzer) is vertical, it passes photons that are in phase | ↑> |↑> and they constructively interfere, as the Hamamatsu diagrams explain. Horizontally polarized photons are absorbed. The central fringe is bright.

When the intermediate polarizer is horizontal, vertically polarized photons are absorbed, left and right photons passing straight through the slits are out of phase, |←> and |→>, and so destructively interfere, |←> |→>. The central fringe is now dark. When the angle of photons going through the slits is to the left or right, the path of light for one slit is longer, and the phase difference goes to zero at the bright fringes on either side of the dark center.

The waves (or wave functions) tell us about the probabilities of finding photons, and the angles at which they leave the slits determine their relative phases.

For Teachers
For Scholars
References from Physics World

General

T Young 1802 On the theory of light and colours (The 1801 Bakerian Lecture) Philosophical Transactions of the Royal Society of London 92 12-48

T Young 1804 Experiments and calculations relative to physical optics (The 1803 Bakerian Lecture) Philosophical Transactions of the Royal Society of London 94 1-16

T Young 1807 A Course of Lectures on Natural Philosophy and the Mechanical Arts (J Johnson, London)

G I Taylor 1909 Interference fringes with feeble light Proceedings of the Cambridge Philosophical Society 15 114-115

P A M Dirac 1958 The Principles of Quantum Mechanics (Oxford University Press) 4th edn p9

R P Feynman, R B Leighton and M Sands 1963 The Feynman Lecture on Physics (Addison-Wesley) vol 3 ch 37 (Quantum behaviour)

A Howie and J E Fowcs Williams (eds) 2002 Interference: 200 years after Thomas Young's discoveries Philosophical Transactions of the Royal Society of London 360 803-1069

R P Crease 2002 The most beautiful experiment Physics World September pp19-20. This article contains the results of Crease's survey for Physics World; the first article about the survey appeared on page 17 of the May 2002 issue.

Electron interference experiments

Visit www.nobel.se/physics/laureates/1937/index.html for details of the Nobel prize awarded to Clinton Davisson and George Thomson

L Marton 1952 Electron interferometer Physical Review 85 1057-1058

L Marton, J Arol Simpson and J A Suddeth 1953 Electron beam interferometer Physical Review 90 490-491

L Marton, J Arol Simpson and J A Suddeth 1954 An electron interferometer Reviews of Scientific Instruments 25 1099-1104

G Möllenstedt and H Düker 1955 Naturwissenschaften 42 41

G Möllenstedt and H Düker 1956 Zeitschrift für Physik 145 377-397

G Möllenstedt and C Jönsson 1959 Zeitschrift für Physik 155 472-474

R G Chambers 1960 Shift of an electron interference pattern by enclosed magnetic flux Physical Review Letters 5 3-5

C Jönsson 1961 Zeitschrift für Physik 161 454-474

C Jönsson 1974 Electron diffraction at multiple slits American Journal of Physics 42 4-11

A P French and E F Taylor 1974 The pedagogically clean, fundamental experiment American Journal of Physics 42 3

P G Merli, G F Missiroli and G Pozzi 1976 On the statistical aspect of electron interference phenomena American Journal of Physics 44 306-7

A Tonomura, J Endo, T Matsuda, T Kawasaki and H Ezawa 1989 Demonstration of single-electron build-up of an interference pattern American Journal of Physics 57 117-120

H Kiesel, A Renz and F Hasselbach 2002 Observation of Hanbury Brown-Twiss anticorrelations for free electrons Nature 418 392-394

Atoms and molecules

O Carnal and J Mlynek 1991 Young's double-slit experiment with atoms: a simple atom interferometer Physical Review Letters 66 2689-2692

D W Keith, C R Ekstrom, Q A Turchette and D E Pritchard 1991 An interferometer for atoms Physical Review Letters 66 2693-2696

M W Noel and C R Stroud Jr 1995 Young's double-slit interferometry within an atom Physical Review Letters 75 1252-1255

M Arndt, O Nairz, J Vos-Andreae, C Keller, G van der Zouw and A Zeilinger 1999 Wave-particle duality of C60 molecules Nature 401 680-682

B Brezger, L Hackermüller, S Uttenthaler, J Petschinka, M Arndt and A Zeilinger 2002 Matter-wave interferometer for large molecules Physical Review Letters 88 100404

Review articles and books

G F Missiroli, G Pozzi and U Valdrè 1981 Electron interferometry and interference electron microscopy Journal of Physics E 14 649-671. This review covers early work on electron interferometry by groups in Bologna, Toulouse, Tübingen and elsewhere.

A Zeilinger, R Gähler, C G Shull, W Treimer and W Mampe 1988 Single- and double-slit diffraction of neutrons Reviews of Modern Physics 60 1067-1073

A Tonomura 1993 Electron Holography (Springer-Verlag, Berlin/New York)

H Rauch and S A Werner 2000 Neutron Interferometry: Lessons in Experimental Quantum Mechanics (Oxford Science Publications)

Normal | Teacher | Scholar
